BH100185 Series
BH100185 Series

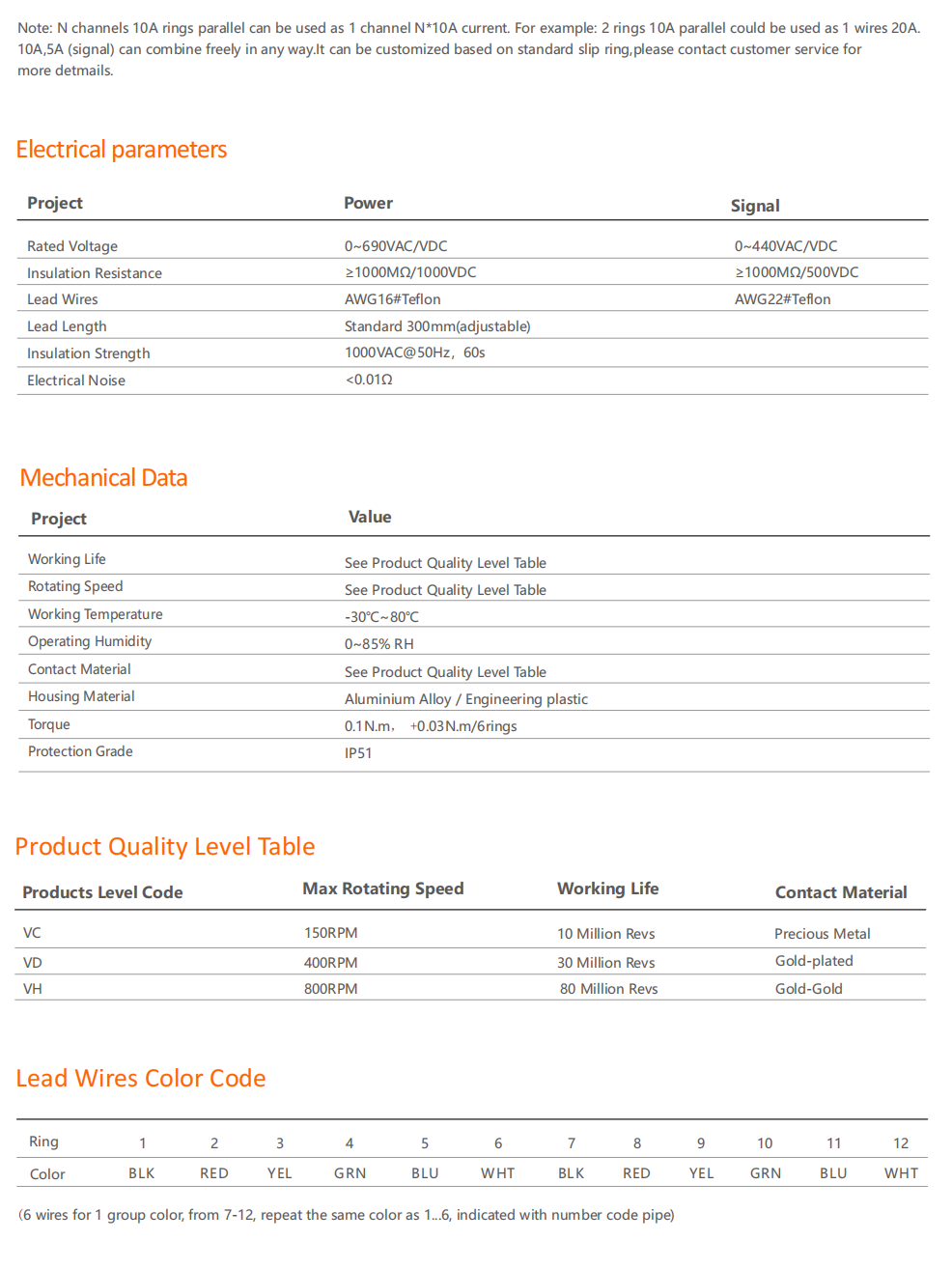

BH100185 series provides a 100mm through-bore for routing and a compact 185mm outside diameter,features long life, fiber brush contact technology for ultimate performance in manychallenging applications.It can transmit signal(2A), 10A, multiple 10A current when 360° degree free rotating.
Overview

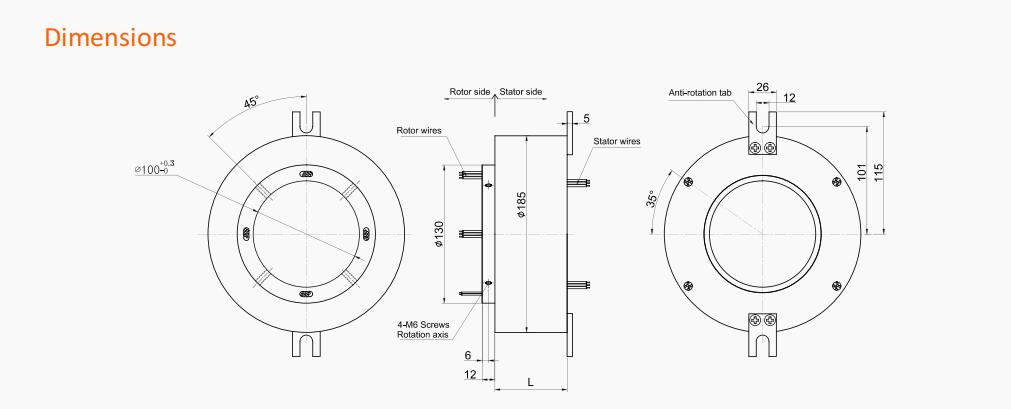

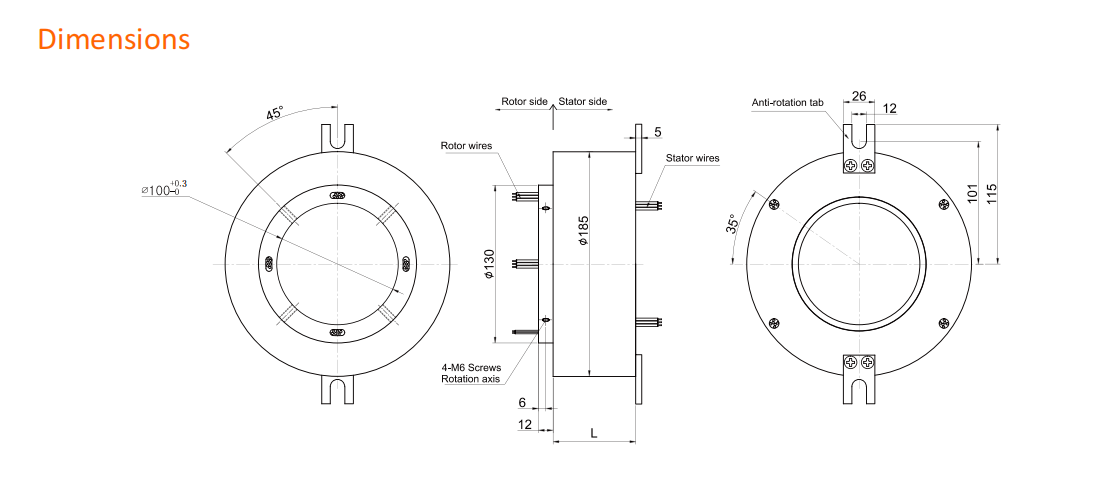

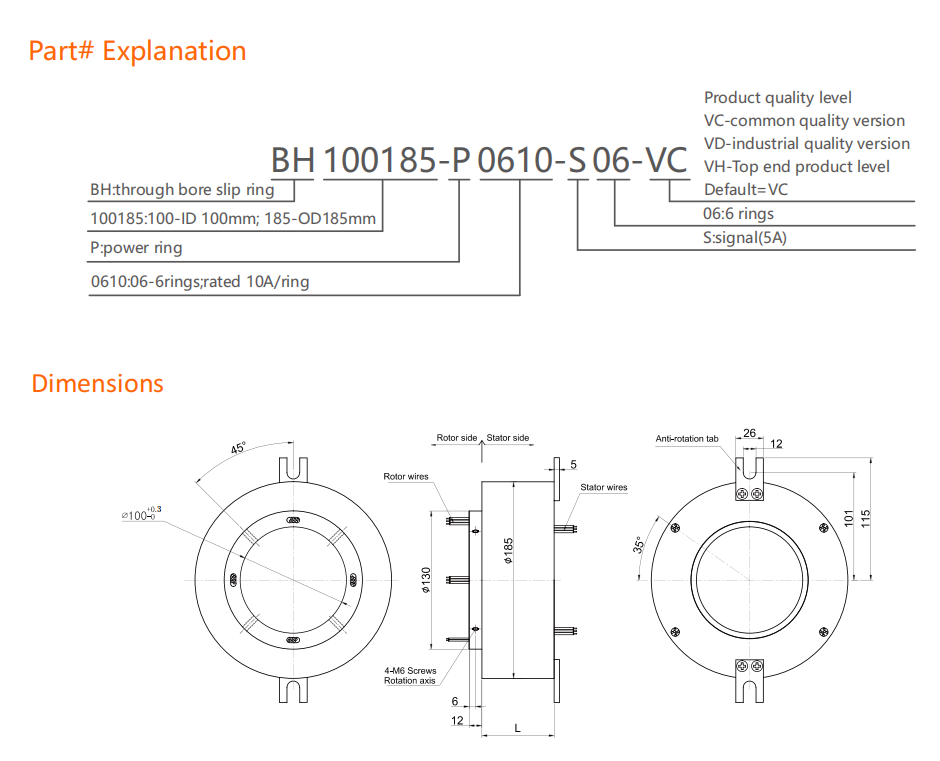

Standard drawings
