BH0522 Series
BH0522 Series
BH0522 series slip rings(sleeping rings) is through bore slip ring with bore size 5mm, OD 22mm, support 2~15 rings,standard series compact slip rings.
Overview

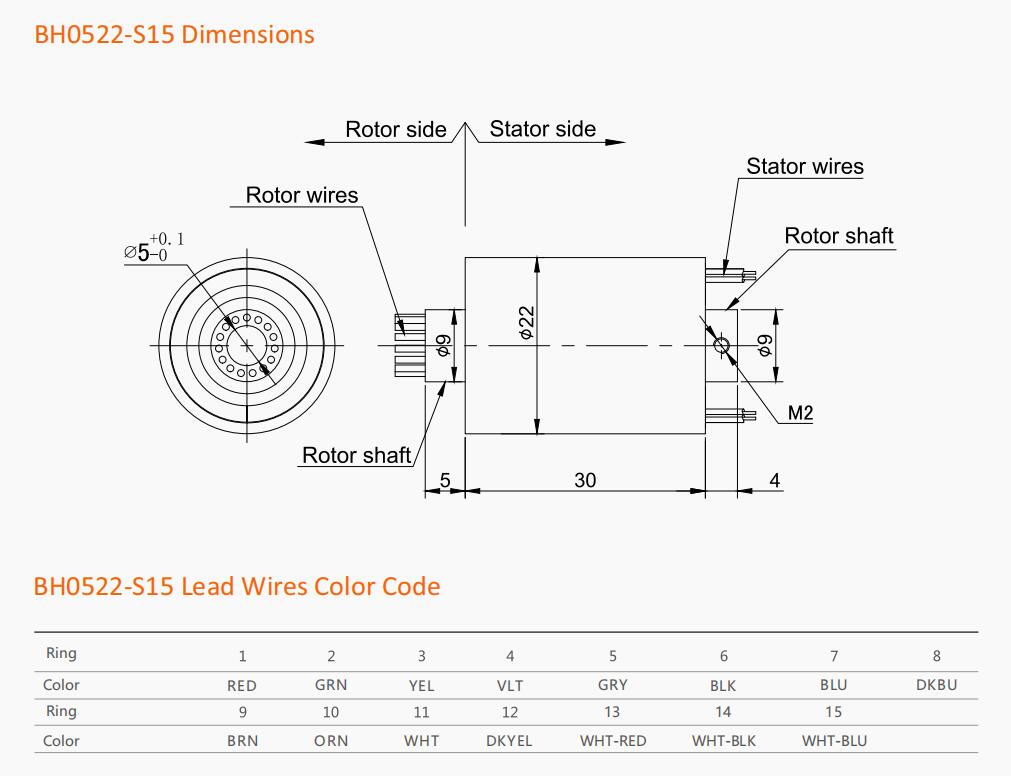

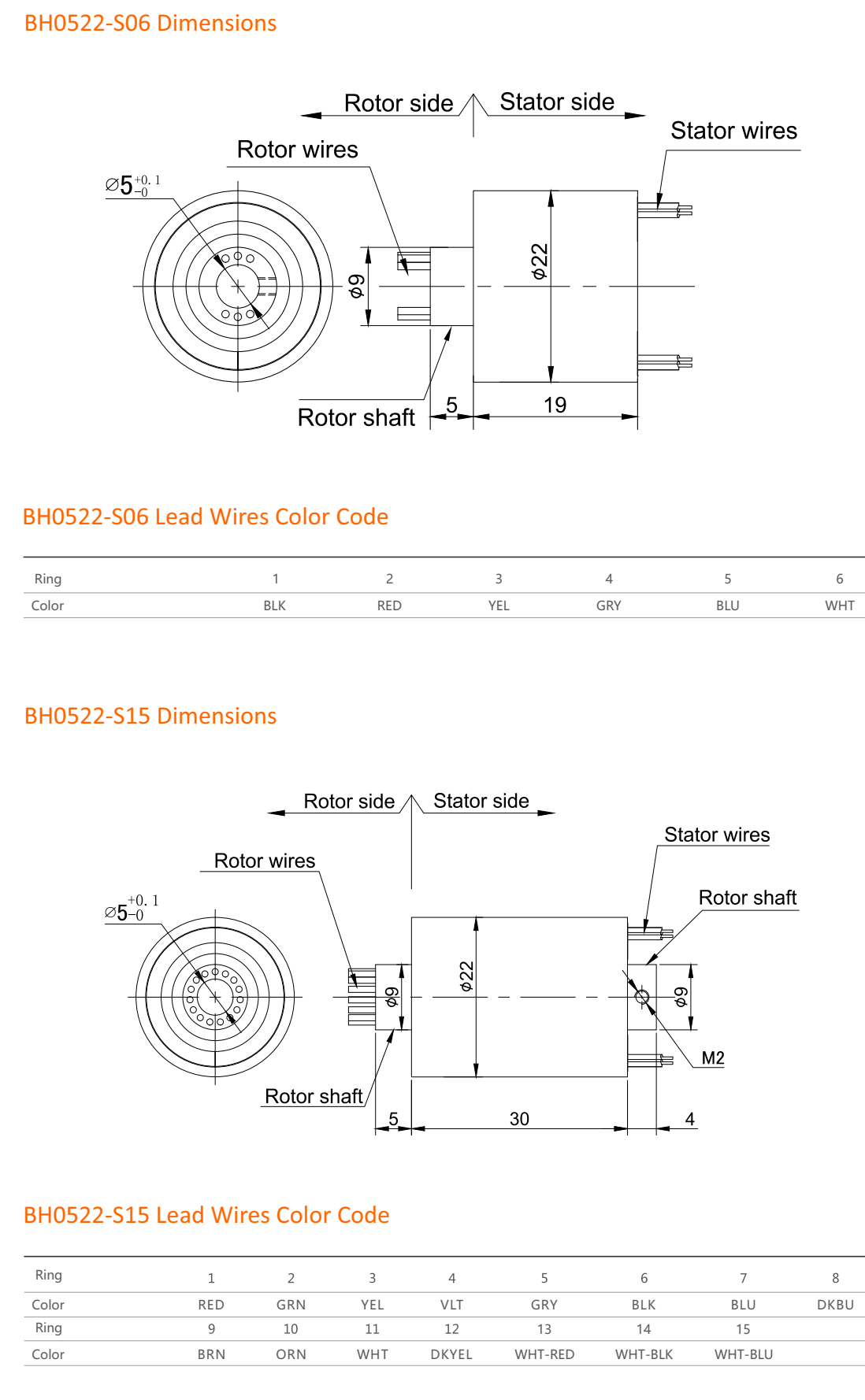

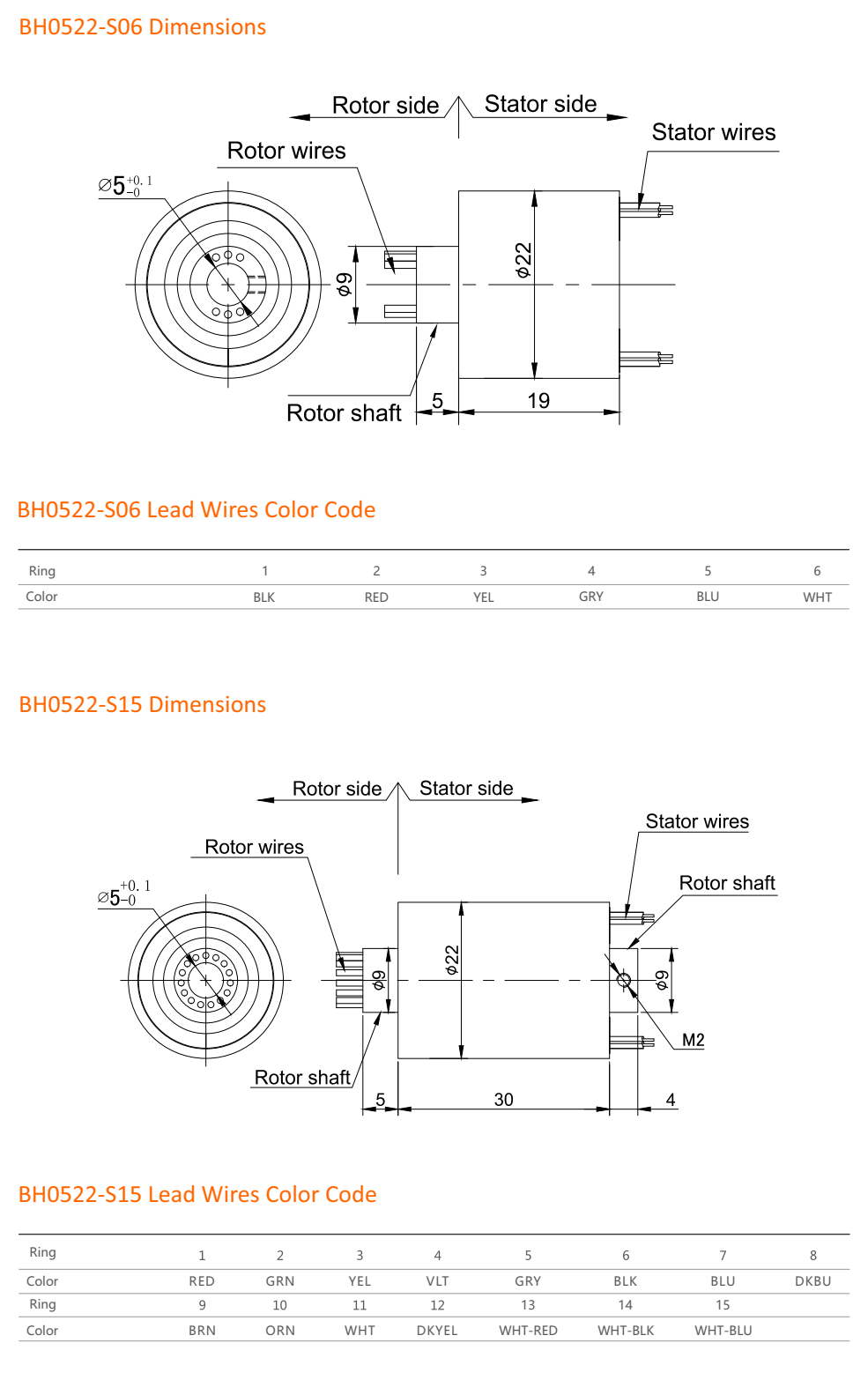

Standard drawings
