BL1000 Series

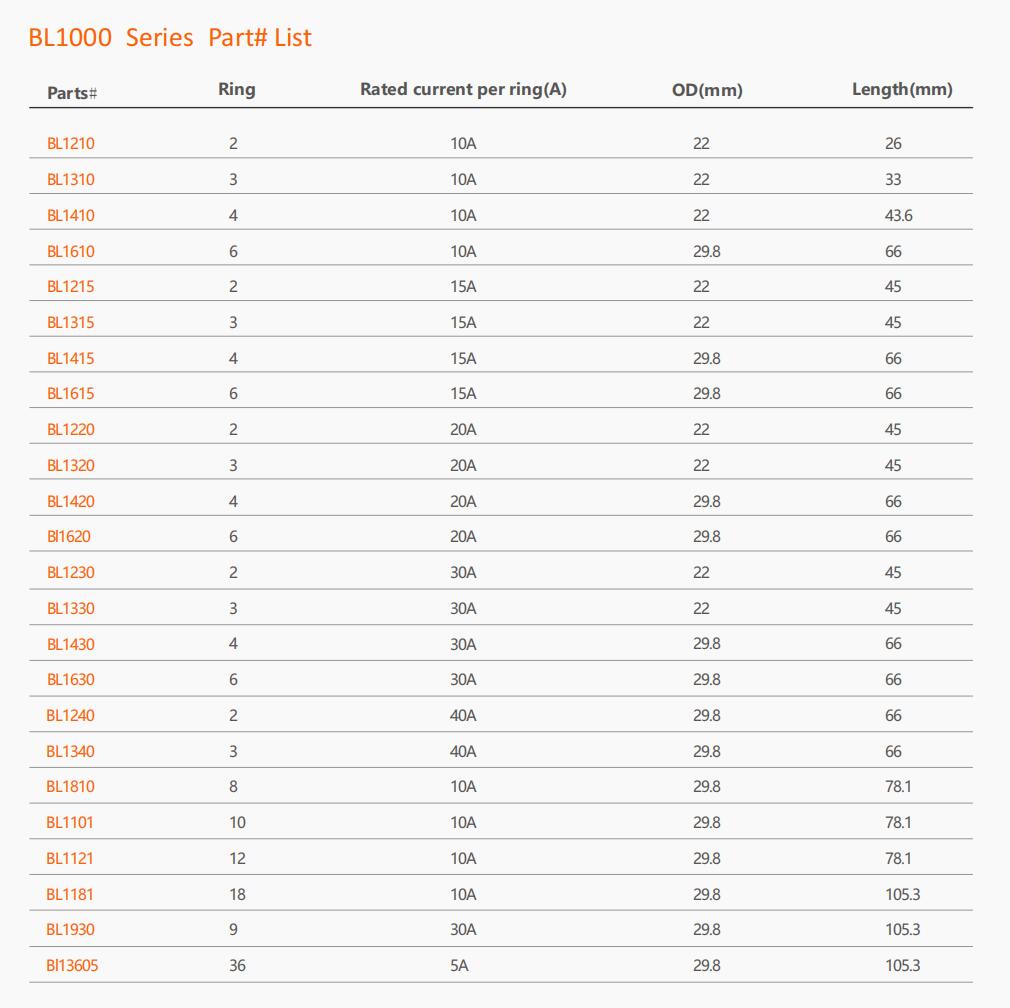

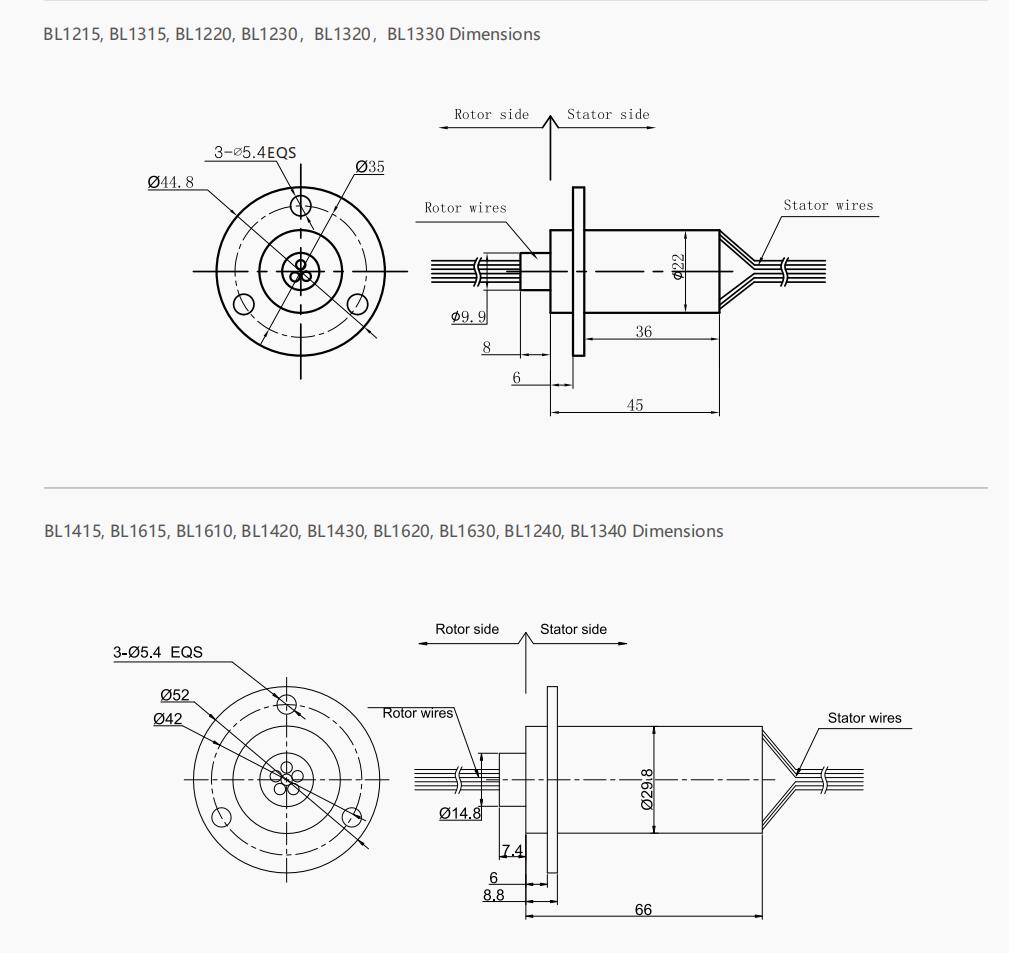

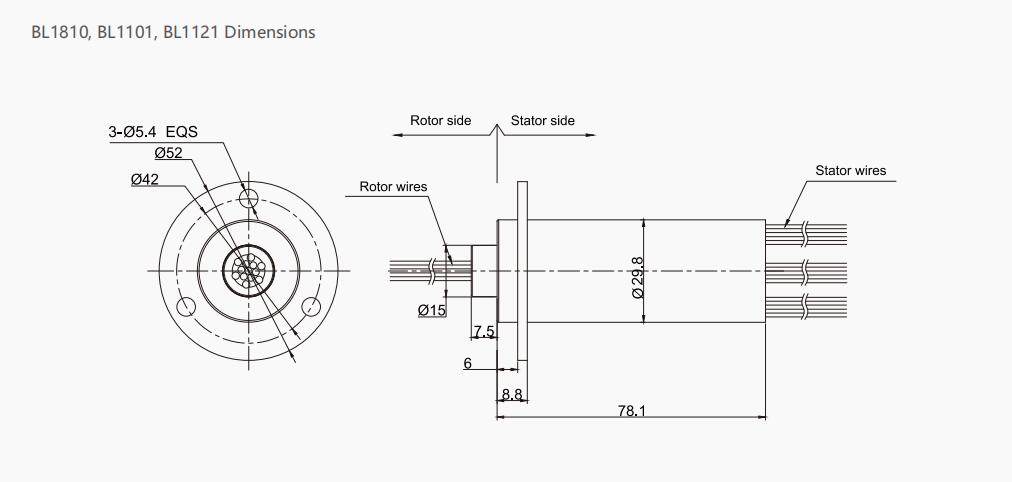

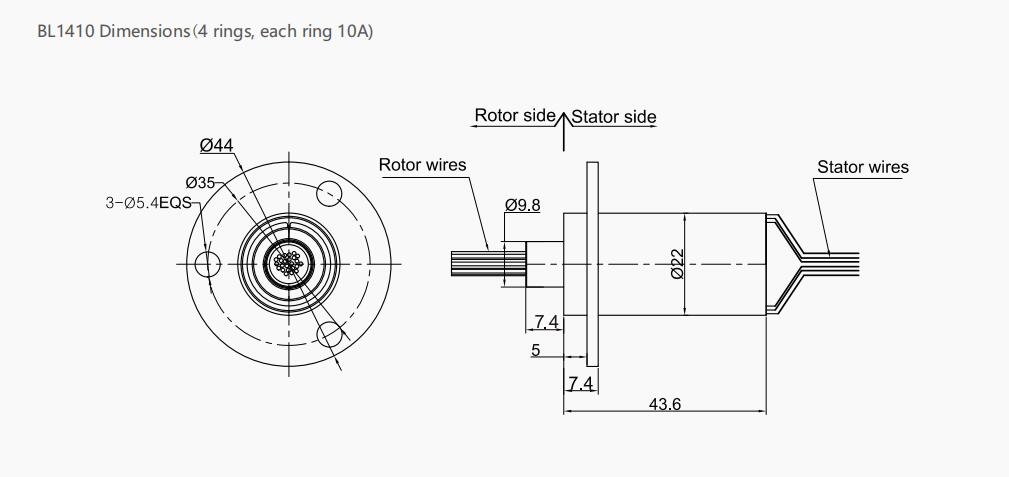

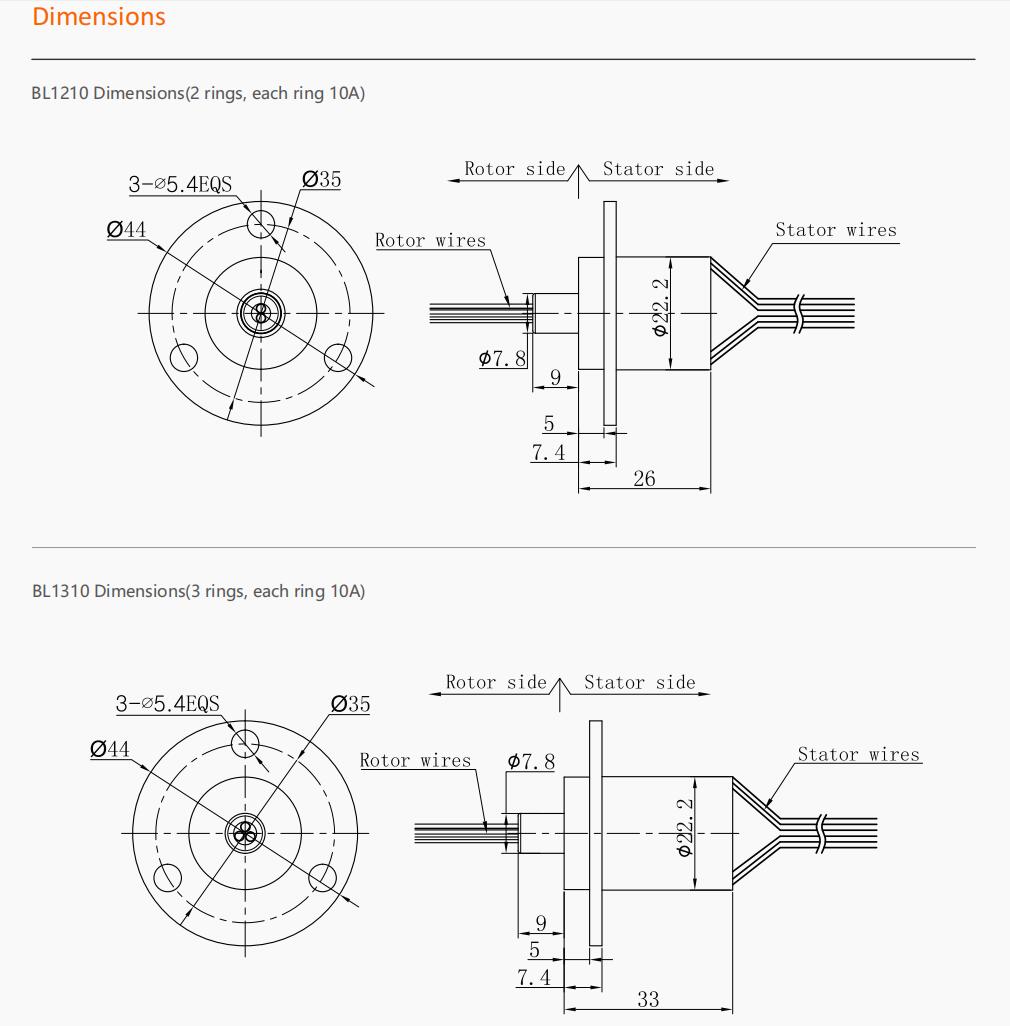

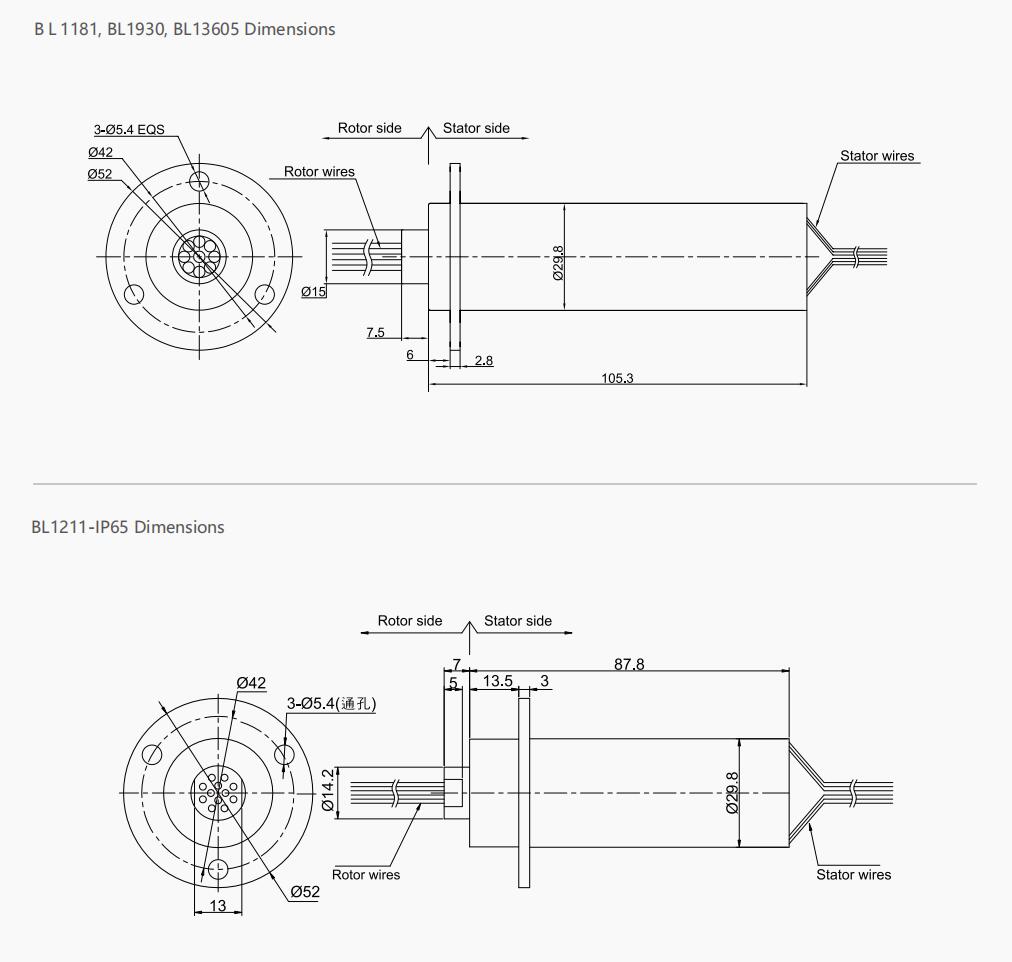

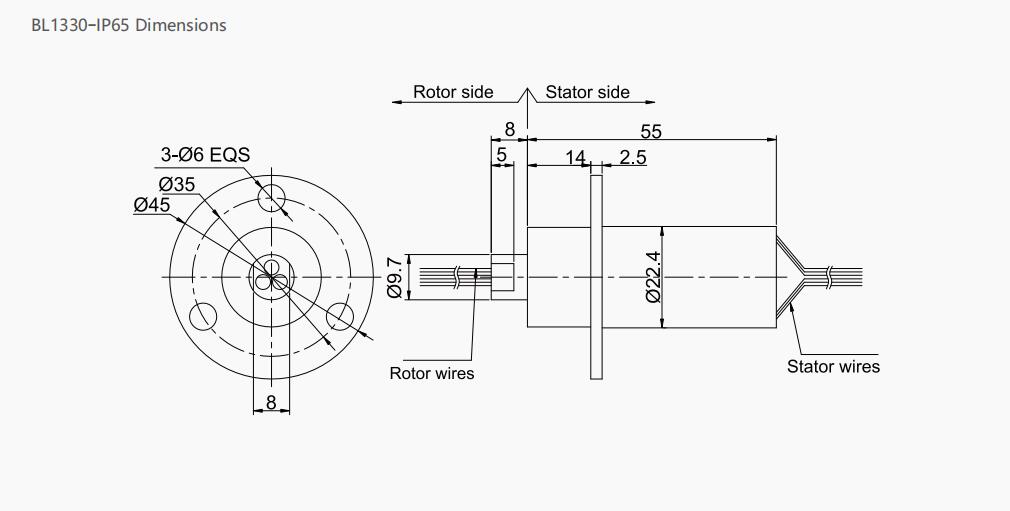

BL1000 Series slip rings are small and compact with OD 22~29.8mm * L 26~78mm, Solid style without through bore and stator flange installation,standard, off-the-shelf.Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
