BF0508D-44

Home  »  Products  »  BX Slip Rings  »  BXJG Series  » BF0508D-44
BF0508D-44

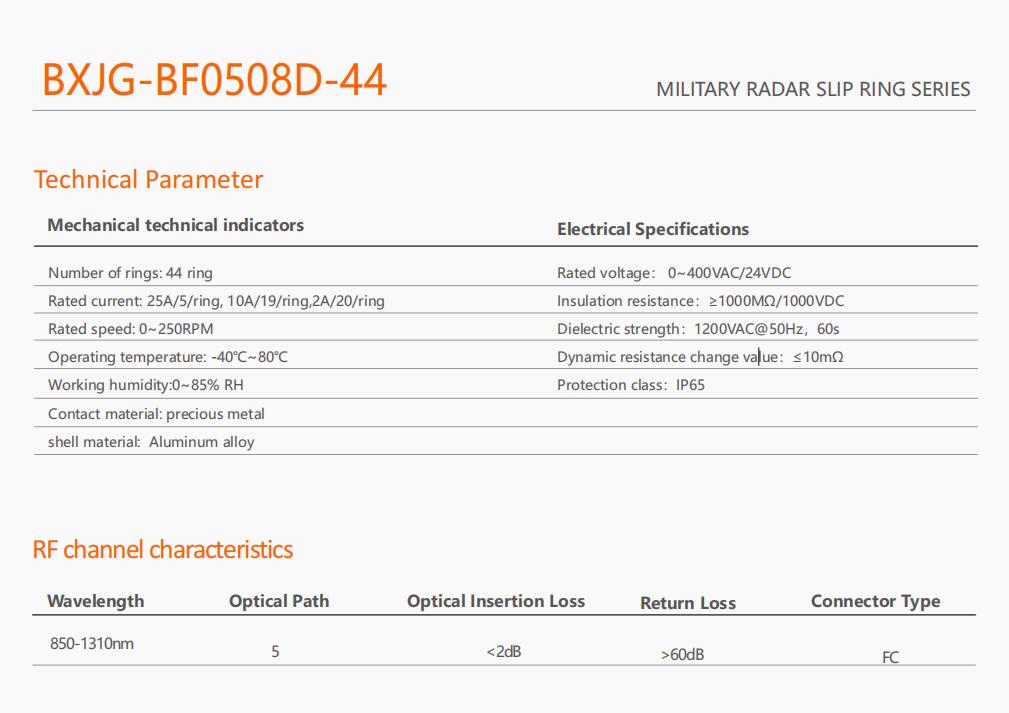

Number of rings: 44 ring Rated current: 25A/5/ring, 10A/19/ring,2A/20/ring Rated speed: 0~250RPM Operating temperature: -40℃~80℃ Working humidity:0~85% RH Contact material: precious metal shell material: Aluminum alloy Rated voltage： 0~400VAC/24VDC Insulation resistance：≥1000MΩ/1000VDC Dielectric strength：1200VAC@50Hz，60s
Download Catalog
BF0508D-44
Overview
Standard drawings
Related Products

BF0508D-44

Please contact the salesperson for the drawings
