BMHF400 Series
BMHF400 is 4 channels high frequency rotary joint, which is specifically designed for high-speed serial digital signals or analog signal transmission. It can support maximum transfer rate 2.5GHz. MHF series can support single channel or high-frequency signal transmission by itself.
BMHF400 Series
Overview

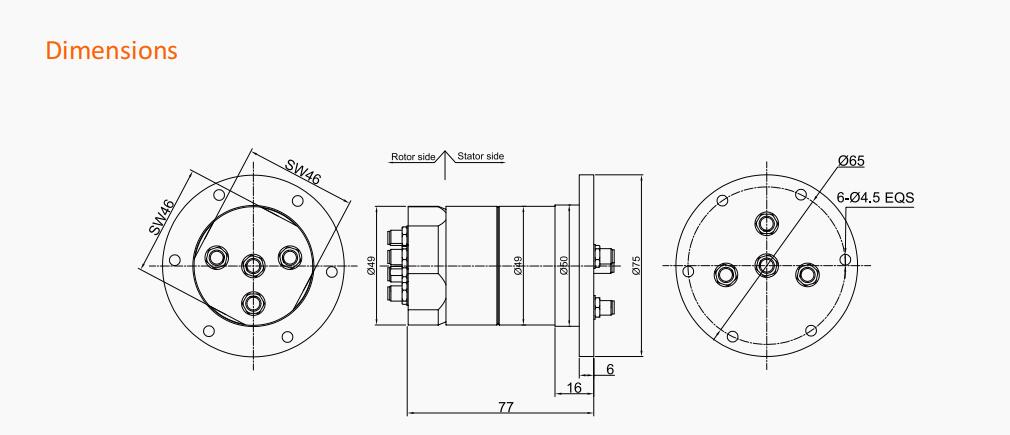

Standard drawings
Related Products

BMHF400 Series

BMHF400 Series

BMHF400 Series


BMHF400 Series
