BBS195 Series

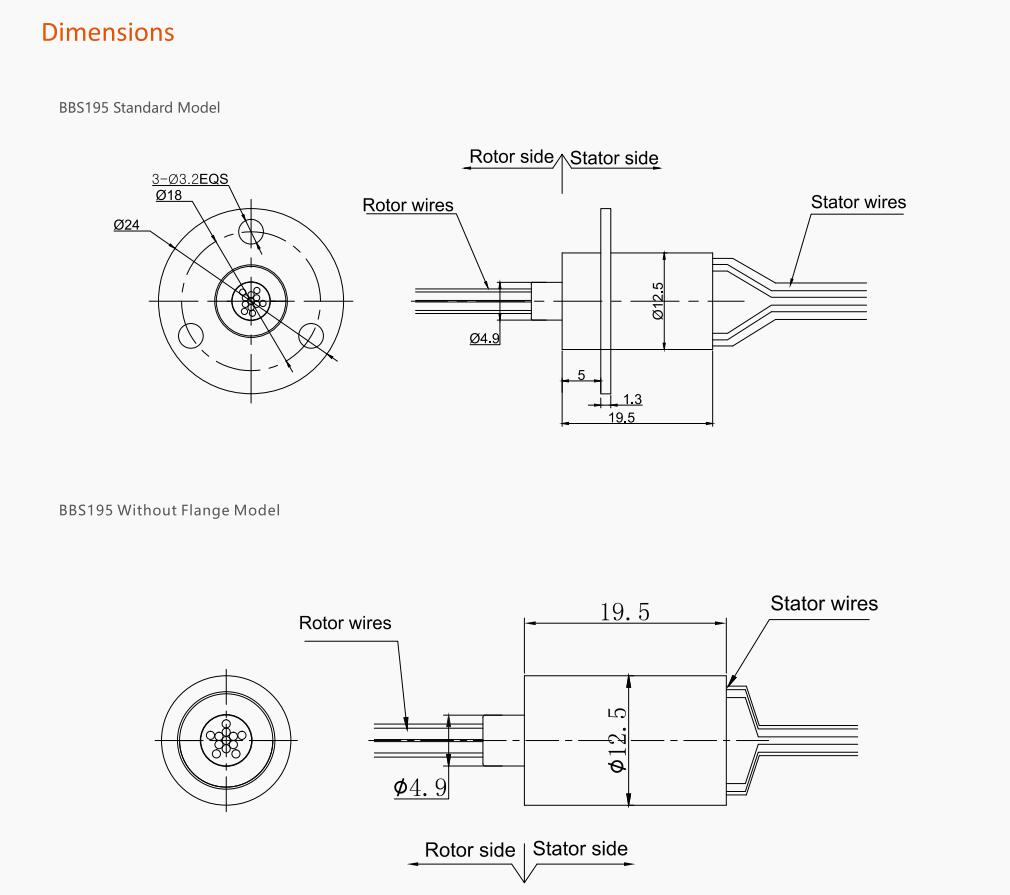

BBS195 slip rings are small and compact with OD 12.5mm * L 19.5mm, standard, off-the shelf.Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
