BBS182 Series

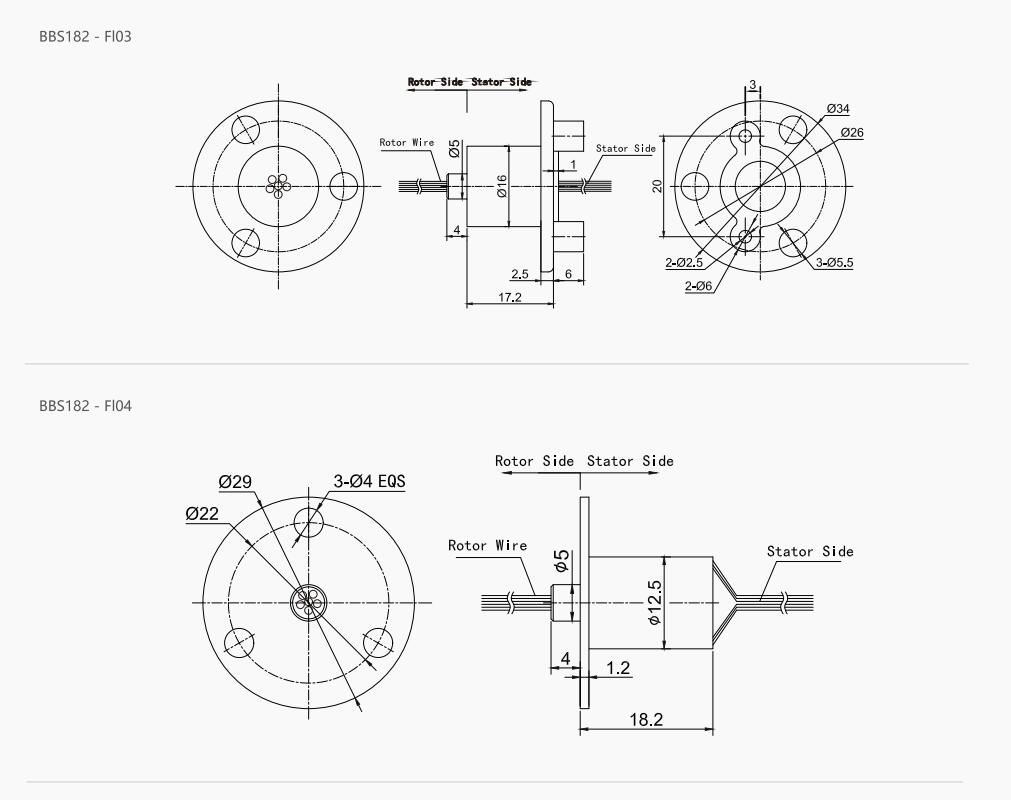

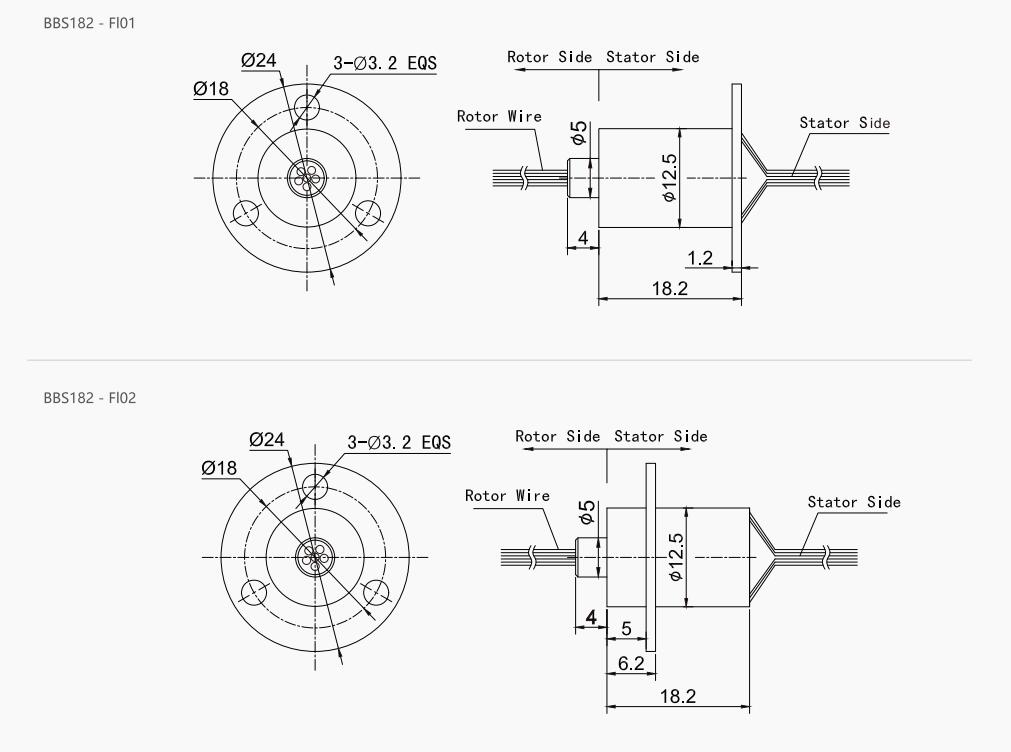

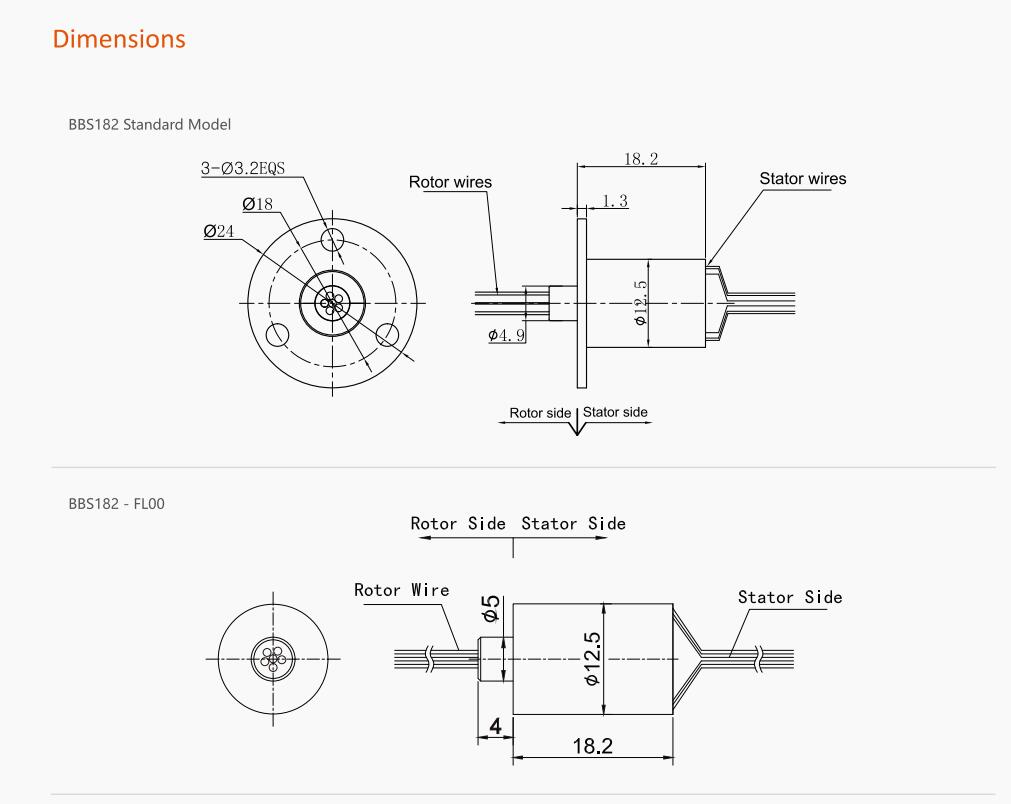

BBS182 slip rings are small and compact with OD 12.5mm * L 18.2mm, standard, off-the -shelf.Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
