BBS119 Series

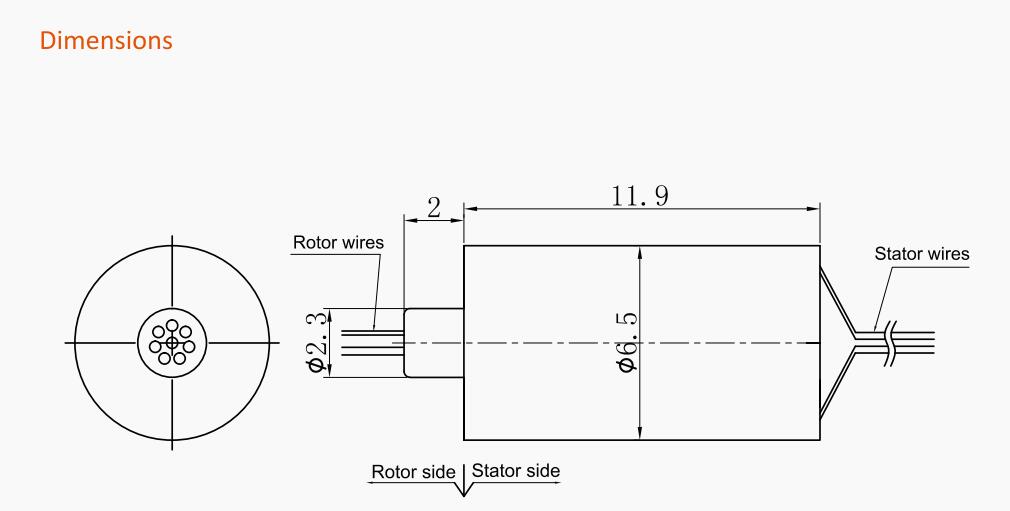

BBS119 slip rings are small and compact with OD 6.5mm * L 11.9mm, standard, off-the-shelf.Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
