BBS088 Series

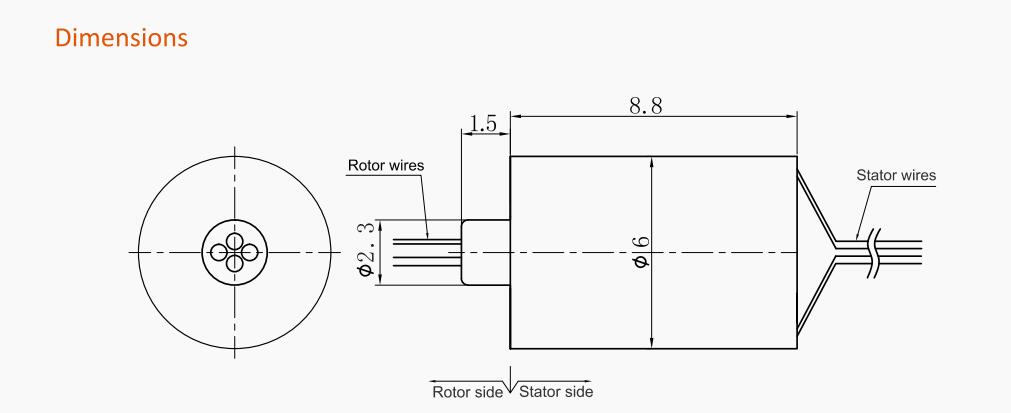

BBS088 slip rings are small and compact with OD 6mm * L 8.8mm, standard, off-the-shelf.Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
