BBS235 series

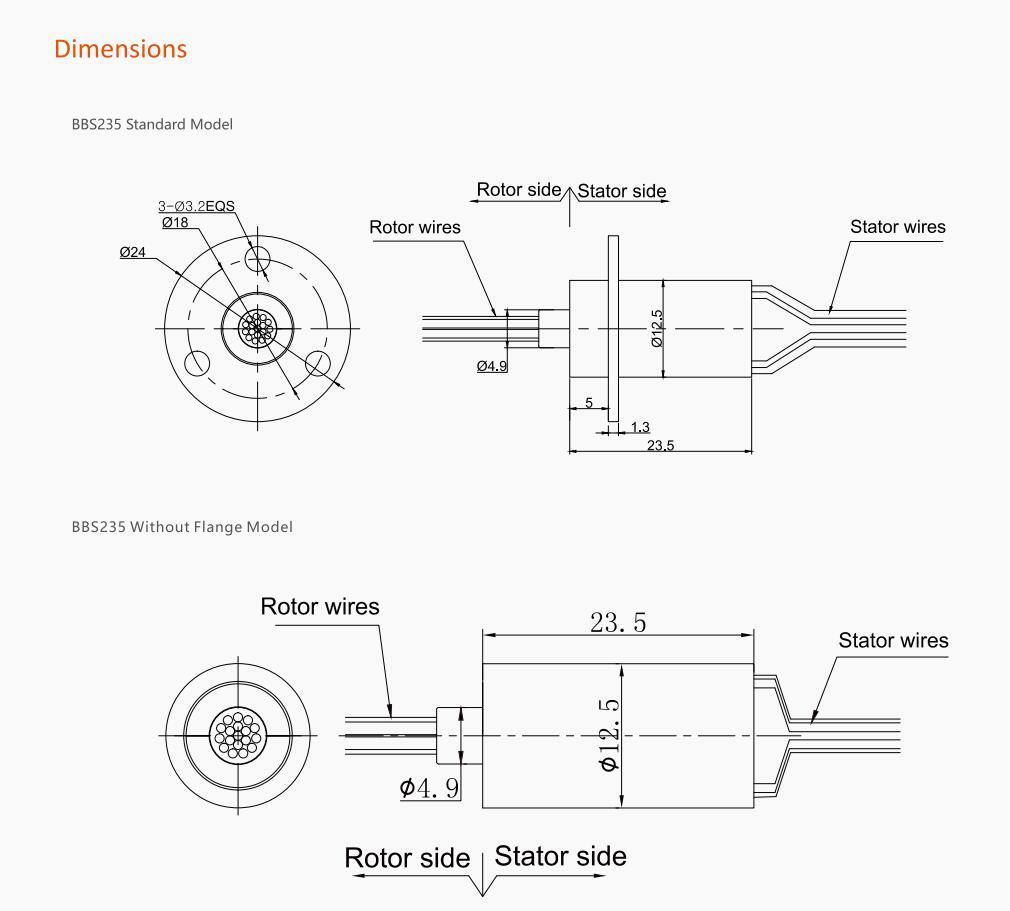

BBS235 slip rings are small and compact with OD 12.5mm * L 23.5mm, standard, off the- shelf.Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
