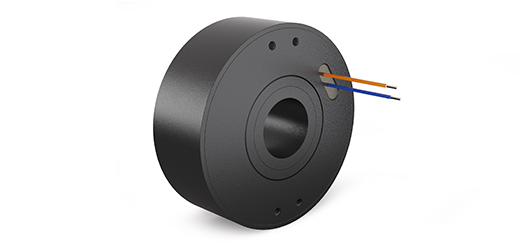

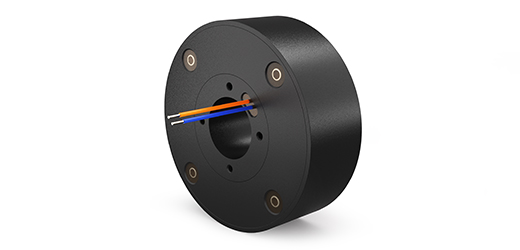

Pancake Slip Rings

Slip rings are an essential component of the world we live in. Vehicles, medical devices, amusement park rides, and even closed camera circuits need them to operate. In applications where the space has a low height, manufacturers usually employ a pancake slip ring.

The pancake slip ring components include a stationary metal or graphite contact, typically called a brush, which rubs on the outside edge of a rotating metal ring. The signal is conducted through the stationary brush to the turning metal ring, powering up the device.

Pancake slip ring assemblies may also be used in wound rotor motors not for transmission but for providing resistance to the rotor windings, to increase torque.

While slip rings come in a variety of styles, the pancake slip ring comes with a host of advantages. What makes it different from the other styles is the configuration of the conductors which are arranged on a flat disc.

You can choose large, mini and micro pancake slip rings with 12 volt brush, such as 12"thru bore, 18" thru bore.

Pancake slip ring manufacturers propose an array of sizes and models for the most varied applications. In broad terms though, this type of slip rings are employed in the:

• automotive industry

• ac motors

• home appliances such as vacuum cleaners

Check our installation guide for pancake slip ring

Yes, we can. Check out our range of products and buy it from us, or get in touch to find the best pancake slip ring price.
