BS857 Series

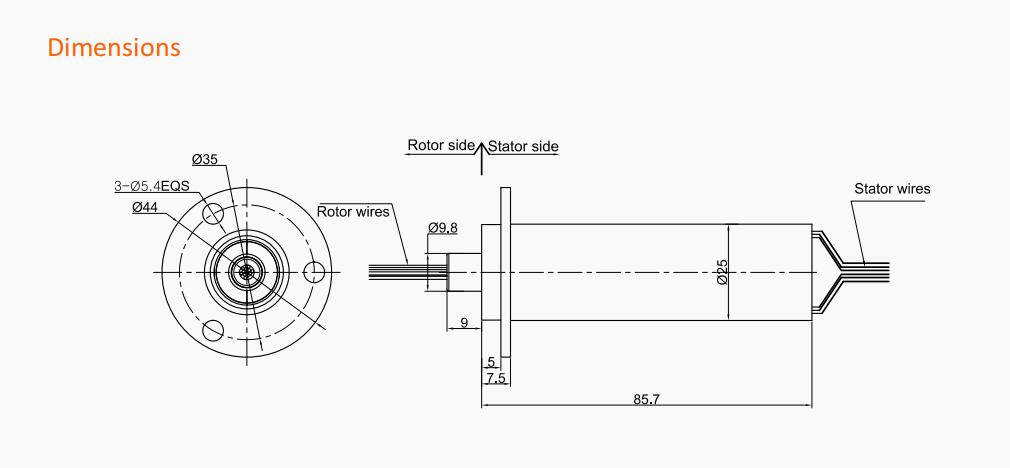

BS857 slip rings are small and compact with OD 25mm * L 85.7mm, with capsule style, standard, off-the-shelf.Colorcoded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
