BS573 Series

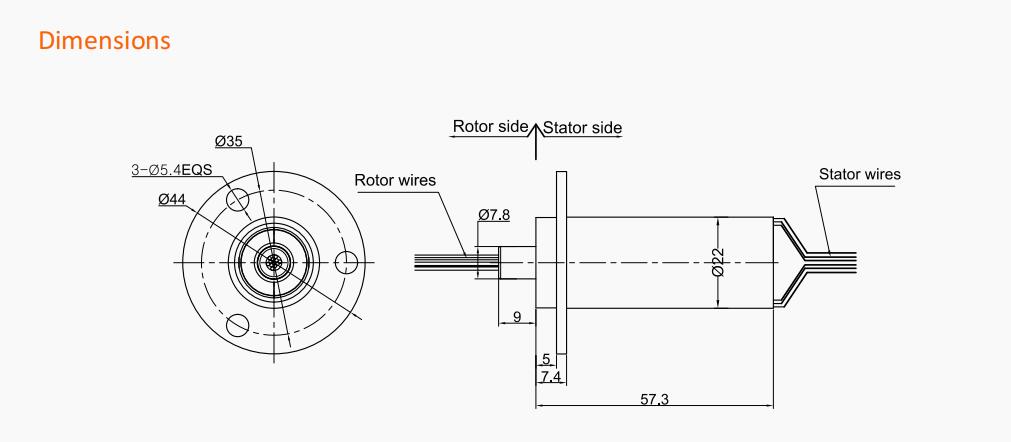

BS573 slip rings are small and compact with OD 22mm * L 57.3mm, with capsule style, standard, off-the-shelf.Colorcoded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90° V-groove ring design for each ring.
