Slip Ring in AC generators

A slip ring, also known as a rotary electrical interface, is a device that allows for the transmission of electrical power and signals from a stationary part to a rotating part.

In an AC generator, the slip rings are used to transfer electrical power from the stator to the external circuit.

The slip rings are mounted on the rotor shaft and are usually made of a conductive material such as copper or brass.

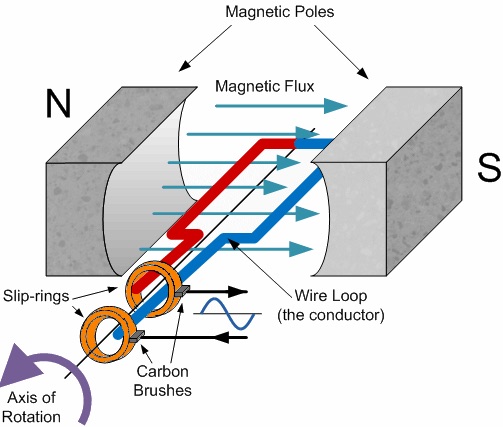

They are circular in shape and rotate along with the rotor. The slip rings are designed to make a sliding contact with the stationary brushes.

But there is a common generator in our life that is wind generator. The slip ring in wind generator is providing power to the motors that pitch the blades and also allowing communication to the hub.

The number of slip rings in an AC generator depends on the type of generator. The most common type of AC generator used today is the three-phase generator. This generator has three slip rings, one for each phase.

However, some AC generators may have more or fewer slip rings, depending on their design and purpose.

The main function of slip rings in an AC generator is to transfer electrical power from the stator to the external circuit. The stator is the stationary part of the generator that houses the coils of wire. When the rotor rotates, it generates a magnetic field that induces a voltage in the stator coils.

The voltage generated in the stator coils is AC, which means it alternates in direction and magnitude. The slip rings are used to transfer this AC voltage to the external circuit. They do this by making contact with the stationary brushes, which are connected to the external circuit.

Carbon brushes are used in conjunction with slip rings in an AC generator. They play a crucial role in making electrical contact with the slip rings. Carbon brushes are made of a conductive material and are designed to make a sliding contact with the slip rings.

The carbon brushes are mounted on the stationary part of the generator, also known as the brush holder. They are spring-loaded, which ensures that they maintain a constant contact pressure with the slip rings. This is important because it helps to prevent arcing and ensures that the electrical contact between the slip rings and the brushes is stable and consistent.

slip rings are an essential component of an AC generator. They are used to transfer electrical power from the stator to the external circuit. The slip rings make contact with the stationary brushes, which are mounted on the brush holder.

The carbon brushes play a crucial role in making electrical contact with the slip rings. The number of slip rings in an AC generator depends on its design and purpose.

If you have any questions or comments about slip ring in AC generator or any other related topic, please feel free to contact us.
