The slip ring and split ring might easily confuse someone who is not non-technical. They are different meanings, but often get mixed up

A slip ring is an electromechanical device that allows electrical signals and power to be transmitted from a stationary part to a rotating part, while a split ring is used to reverse the direction of the current in a DC motor.

But what does this definition tell us? Let's find out by reading more about what is a slip ring, what is a split ring, and what are the main difference between a slip ring and a slip ring.

Now, let’s start discussing the slip ring vs split ring by the definitions.

What is a slip ring

A slip ring is a rotating electrical connector that allows electrical signals and power to be transmitted from a stationary part to a rotating part. It consists of a rotating ring and brushes that maintain electrical contact with the ring as it rotates.

The brushes are typically made of a conductive material, such as copper, and are mounted on a stationary part of the machine. The ring is usually made of a conductive material and is mounted on the rotating part.

As the ring rotates, the brushes maintain contact with the ring, allowing electrical signals and power to be transmitted from the stationary part to the rotating part.

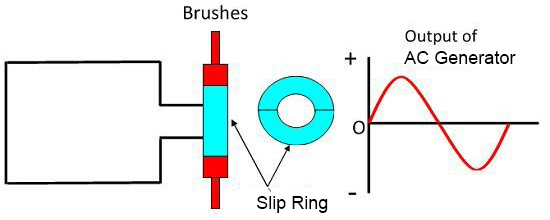

Slip Ring in AC generator
Slip Ring in AC generator

What is a split ring

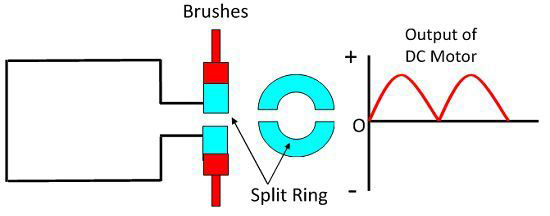

Split Ring in DC Motor
Split Ring in DC Motor

A split ring, on the other hand, is a type of commutator that is used to reverse the direction of the current in a DC motor. It consists of two semicircular rings that are mounted on the rotating shaft of the motor.

Each ring is made of a conductive material, such as copper, and is insulated from the other ring. The brushes that maintain contact with the rings are mounted on a stationary part of the motor.

As the motor rotates, the brushes maintain contact with the rings, and the current is switched between the two rings, reversing the direction of the current in the motor.

Difference between slip ring and split ring

There’s a variety of different slip ring used for different purposes. The main difference between the slip ring and the split ring is that the slip ring is rotating electrical connector while a split ring is a type of commutator

Here’s what difference between slip ring and split ring:

Principle of work

The slip ring is a device that is used for transferring the power between the rotating and stationary structure in AC generator, while the a split ring is type of commutator that is used for reversing the direction of current.

Uses

The slip ring is used in AC generator, while a split ring is used in DC motor.

Design

The slip ring is a closed ring (continuous), while the split ring is divided into two parts.

Conclusion

In summary, slip rings are used to transfer electrical signals and power from a stationary part to a rotating part, while split rings are used in DC motors to reverse the direction of the current.
