BH3899 Series
BH3899 Series
BH3899 series provides a 38.1mm through-bore for routing and a compact 99mm outside diameter,features long life, fiber brush contact technology for ultimate performance in manychallenging applications.It can transmit signal(2A), 10A, multiple 10A current when 360° degree free rotating.
Overview

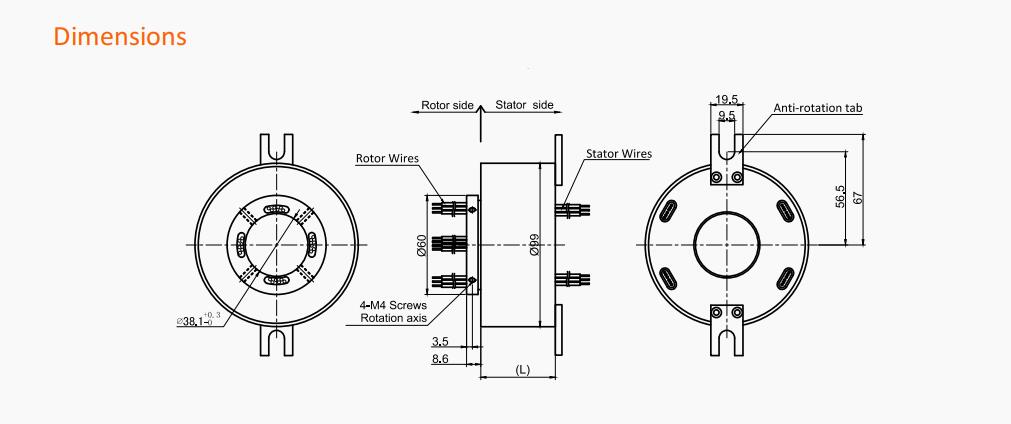

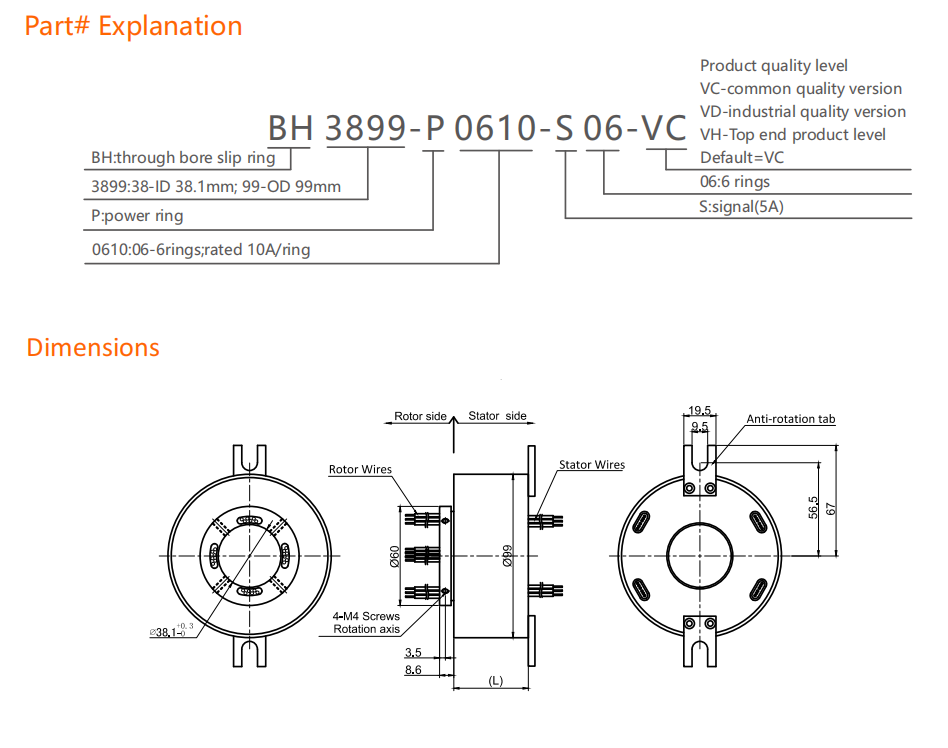

Standard drawings
