BH series Through Bore Slip Rings

Throught Bore Slip Rings

Designed for through bore hydraulic or pneumatic rotating shaft installation.

Uses fiber brush technology which offers several advantages over conventional

slip ring contacts including multiple points of contact per brush bundle

Bore size from 3 to 800mm, Standard, off-the-shelf

Gold plated ring and Gold alloy brush

Through bore slip ring can support power + signals transmitting

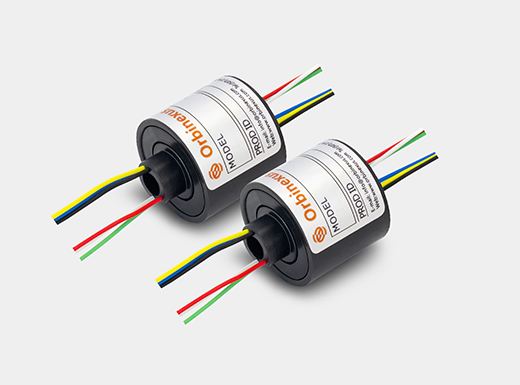

BH0522 series slip rings(sleeping rings) is through bore slip ring with bore size 5mm, OD 22mm, support 2~15 rings,s...

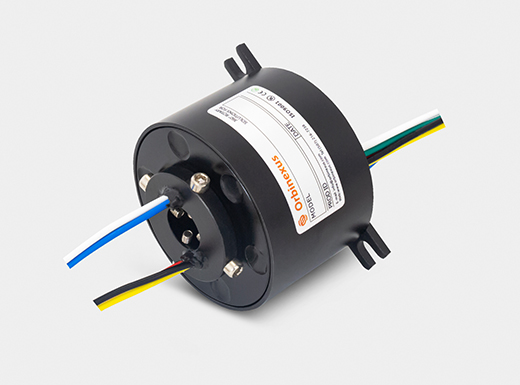

BH1256 series provides a 12.7mm through-bore for routing and a compact 56mm outside diameter,features long life, fiber...

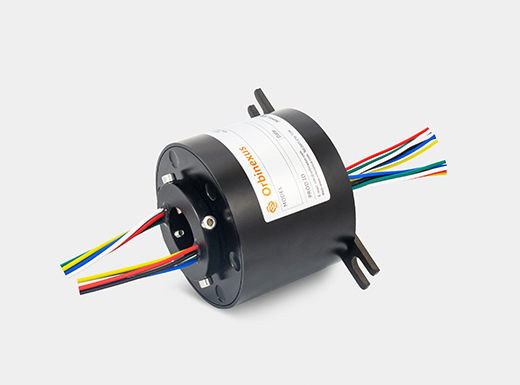

BH2586 series provides a 25.4mm through-bore for routing, and a compact 86mm outside diameter,features long life, fibe...

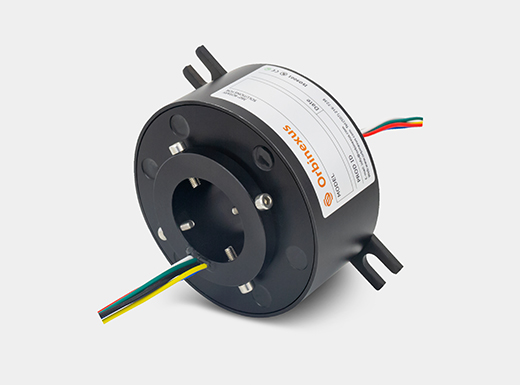

BH3899 series provides a 38.1mm through-bore for routing and a compact 99mm outside diameter,features long life, fiber...

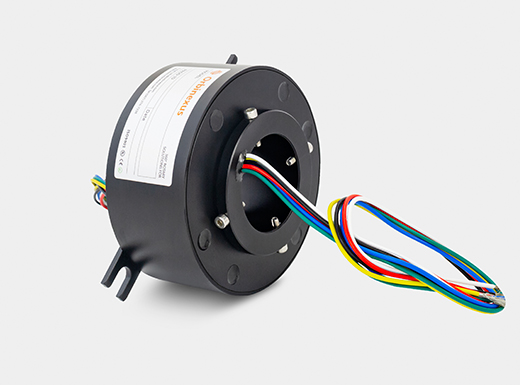

BH50119 series provides a 50mm through-bore for routing and a compact 119mm outside diameter,features long life, fiber...

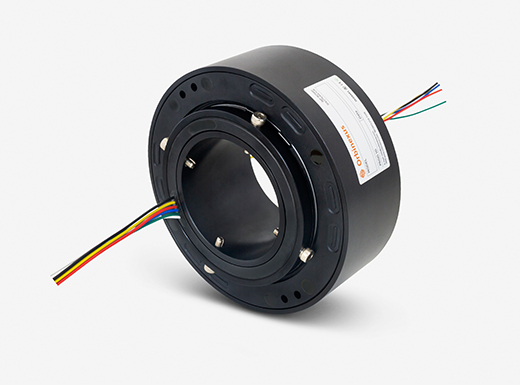

BH100185 series provides a 100mm through-bore for routing and a compact 185mm outside diameter,features long life, fi...

BH Series
