BL2025 Series

BL2025 series is large current slip ring with bore diameter 25.4mm. The through bore slip ring can be used for shaft installation or through gas-liquid catheter. This series slip ring can be with rated current 20A/30A/50A to over 100A.

Download Catalog

Overview

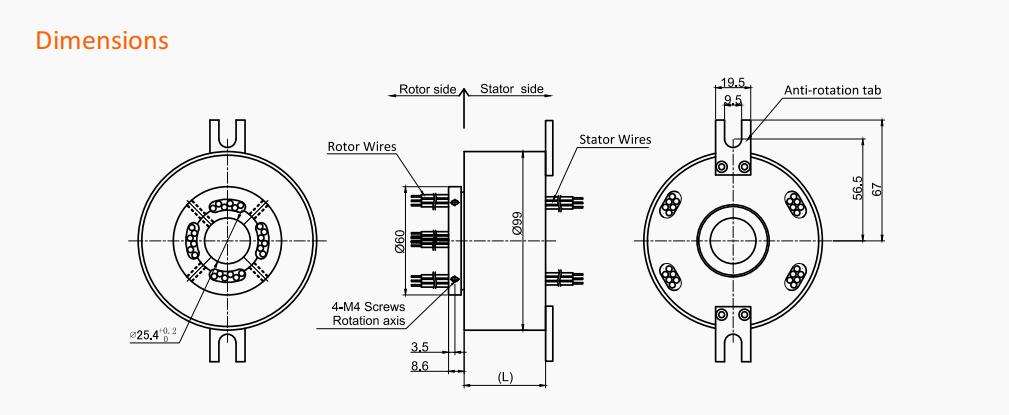

Standard drawings
