BXME2131 Series

Home  »  Products  »  BX Slip Rings  »  BXME Series  » BXME2131 Series
BXME2131 Series
BXME2131,support 1 channel 1000M ethernet slip rings, with through bore size 12.7mm(0.5"), overall diaBXMEter 33mm, are standard, off-the-shelf, color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
BXME2131 Series
Overview

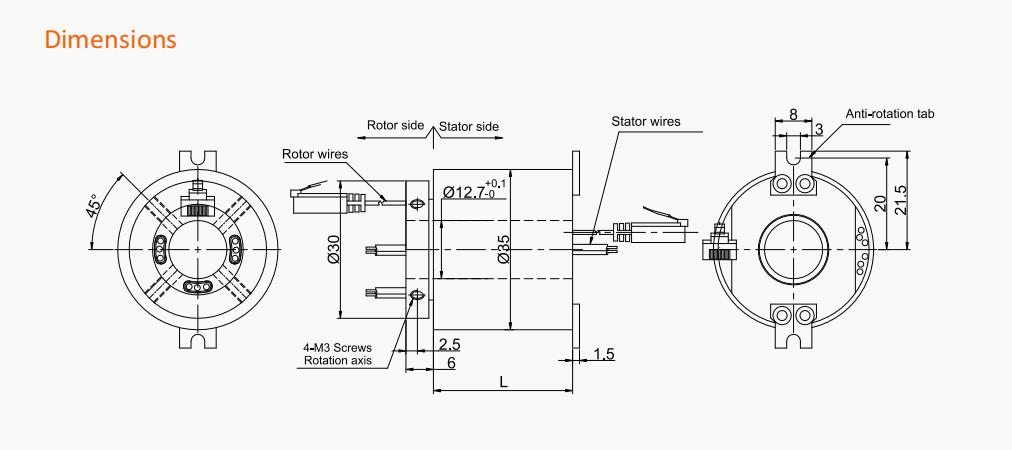

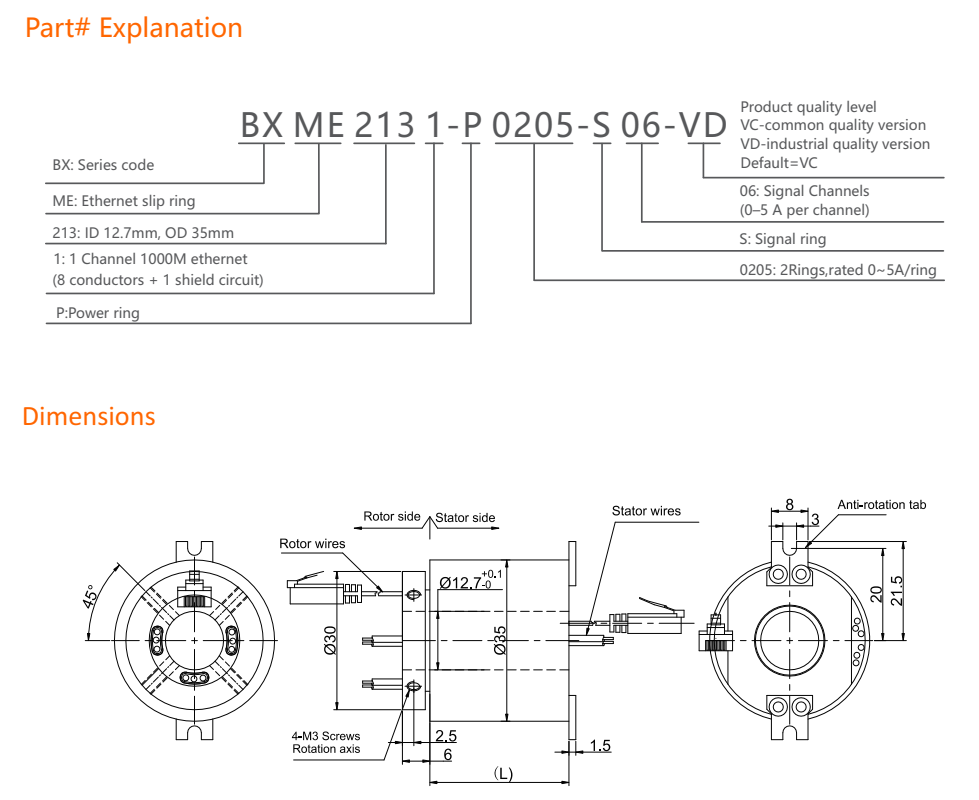

Standard drawings
Related Products

BXME2131 Series

BXME2131 Series

BXME2131 Series


BXME2131 Series
