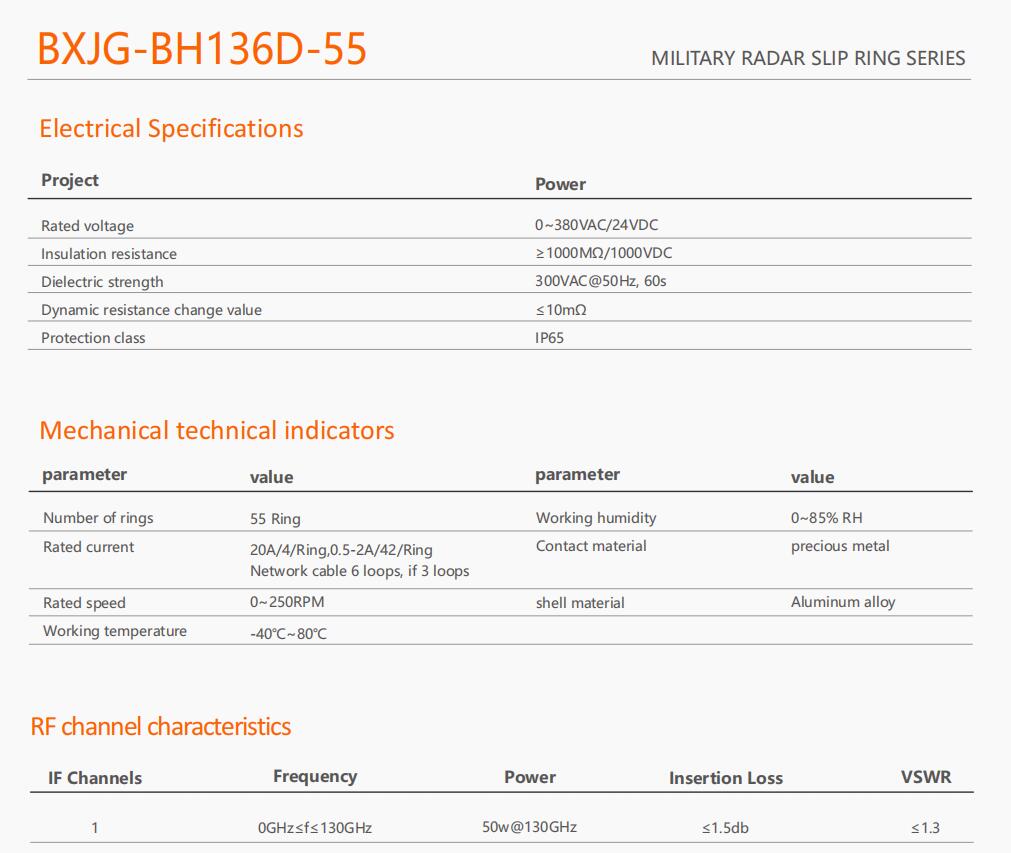

BH136D-55
BH136D-55
Rated voltage:0~380VAC/24VDC
Insulation resistance:≥1000MΩ/1000VDC
Dielectric strength:300VAC@50Hz, 60s
Dynamic resistance change value:≤10mΩ
Protection class:IP65
Working humidity:0~85% RH
Contact material:precious metal
shell material:Aluminum alloy
Overview
Standard drawings
Related Products
Please contact the salesperson for the drawings
MD119-12
Number of rings:12Ring
Rated current:5A/12/Ring
working life:100 Million revs
Working temperature:-30℃~80℃
Wor...
BSDI224
Number of rings:25 Ring
Rated current:2A/24/ring, HD HD-SDI 1road
working life:200 Million revs
Operating t...
BHF400
Rated voltage:28VDC,27VDC,26VDC
Insulation resistance:≥500MΩ/500VDC
Dielectric strength:500VAC@50H...
