BFORJ1000C Series

Home  »  Products  »  RF & Optic Rotary Joints  »  BFORJ Series  » BFORJ1000C Series
BFORJ1000C Series
MFO1000C can combine 10 channels optic fiber and electric(1~72wires). It adopt complete aluminum alloy structure, can support signal(5A). Rotary joint of FORJ+Electric is also called photoelectrical slip ring, photoelectricity collector ring, which adopts fiber optic as data transmission media to solve the data transmission between system units.
BFORJ1000C Series

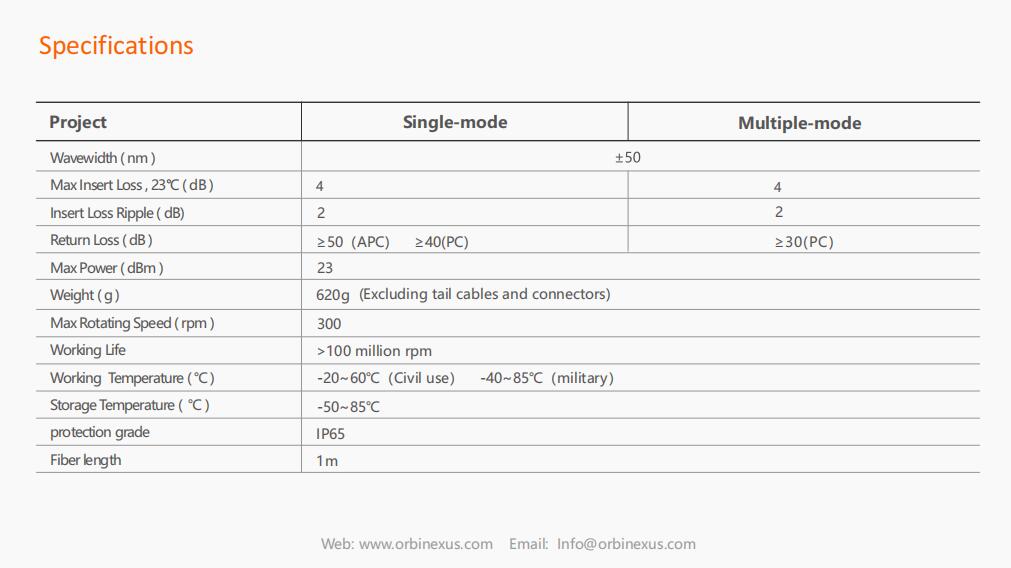

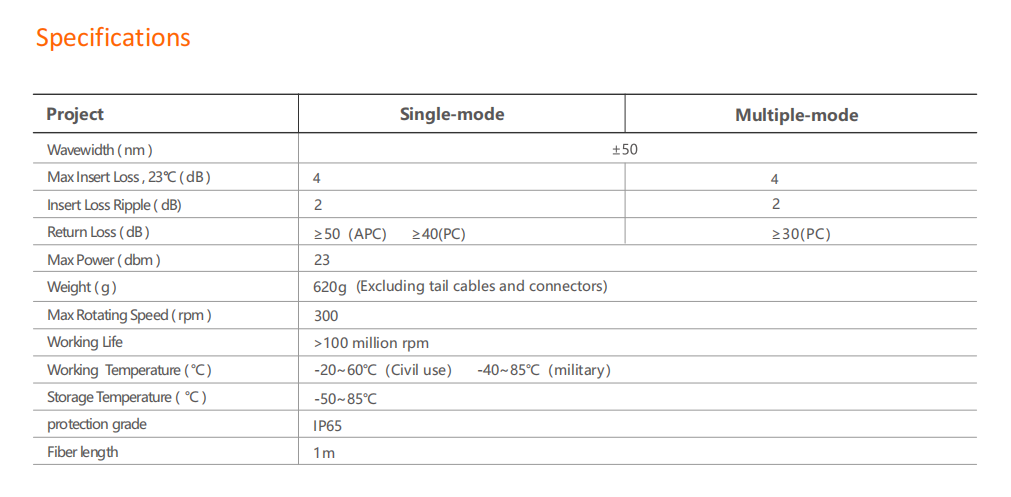

Overview

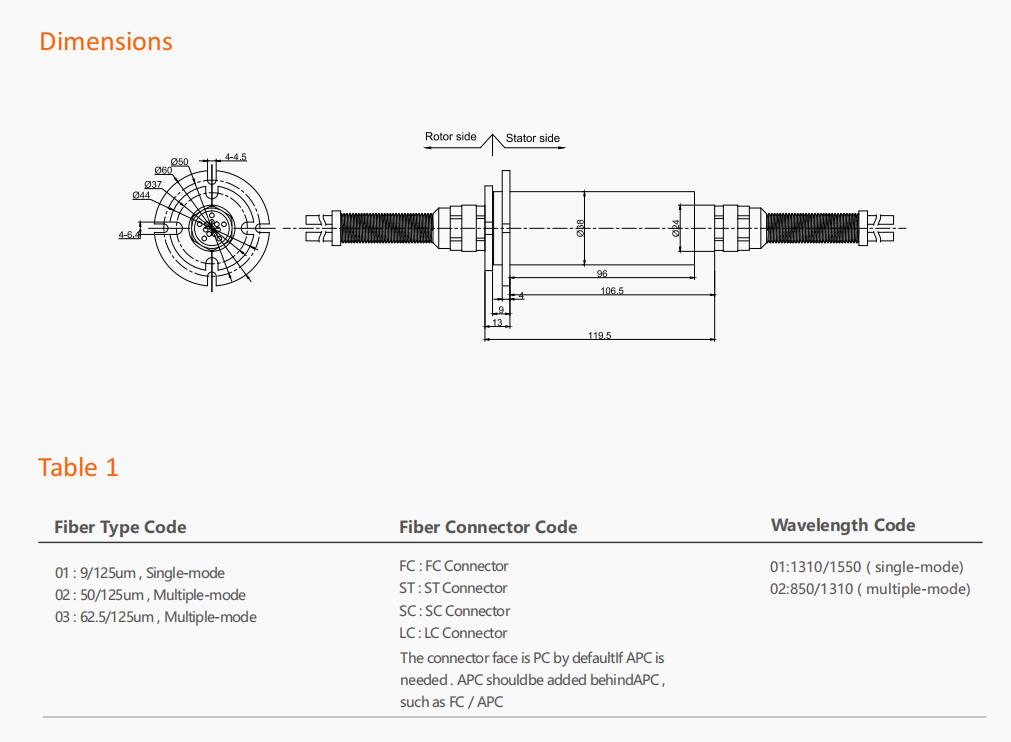

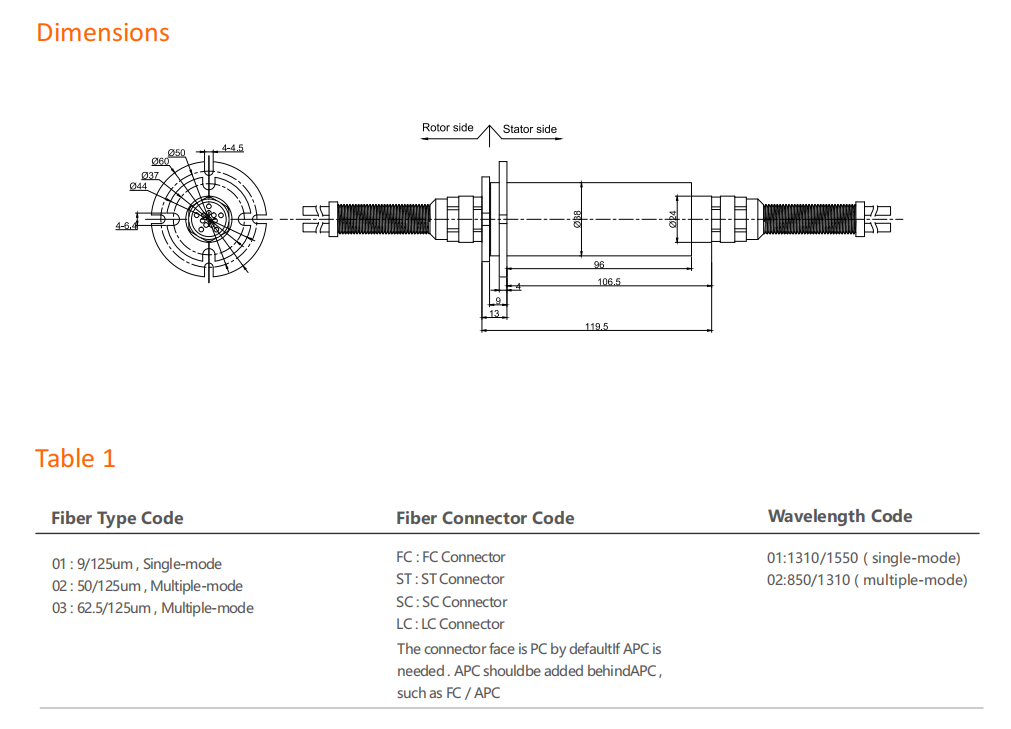

Standard drawings
